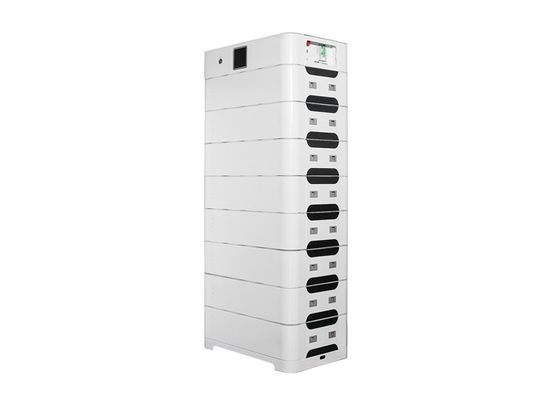

20.4kWH BMS Energy Storage Lithium Battery For Medical Devices
Key Attributes
Brand Name:
Smart
Place of Origin:
China
Certification:
ISO9001, ISO14001, UL, CE, ROHS, etc
Minimum Order Quantity:
50pcs
Price:
Negotiable
Supply Ability:
3000 PCS per Month
Delivery Time:
7-30days
Payment Terms:
T/T, Western Union, MoneyGram
Standard Packaging:
Standard Export Carton,Wooden Case ,Pallet etc.
Specifications
Highlight Features
20.4kWH Energy Storage Lithium Battery
,BMS Energy Storage Lithium Battery
,50A Batteries For Energy Storage
Color:
White Or Customized
Warranty:
8 Years
OEM/ODM:
Acceptable
Charge Method:
CC/CV
Communication:
CAN/RS485/Agreement In The Country Of The Customer
Capacity:
50A Or Customized
Weight:
223Kg
Cell Brand:
CATL/BYD/SANYO Etc.
Product Description
Energy Savinng 20.4kWH BMS Energy Storage Lithium Battery For Medical Devices
Quick Details:
- Using the technology of lithium iron phosphate cell ,Superior Safety, Thousands of Cycles, 100%DOD,Under Nomal Conditions
- Built in automatic protection for over-charge ,over discharge ,over current and over temperature
- Maintanace free,internal cell balancing ,can be charged using most standard lithium iron phosphate (set) wider temperature range:-20℃~60℃
- Lighter Weight :About 40%~50 of the weight of a comparable lithum battery
Application:solar , wind complementary stored energy streetlights, energy storage systems, household energy storage. Power Supply: communication base station power supply, utility power supply, communication industry, emergency power supply and other system standby power .
Connectors of energy storage system
Charge / Discharge connectors: to connect the positive pole (+) and negative pole (-) from the battery to the inverter via DC isolator.
RS485: Communication portal between battery and inverter.
USB To RS232: to get dynamic monitoring data of the battery from host computer.
Address: To set BMS or battery Pack Address for multiple parallel connect
| Specification | |
| Usable Energy | 20.4kWh |
| Max Output Current | 50A |
| Peak Output Current | 70A |
| Nomainal Voltage | 204.8V |
| Operating Voltage | 172.8V-230.4V |
| Dimensions(H/W/D) | 780×620×380mm |
| Weightt | 223KG |
| Operating Temperature | —10℃to＋50℃ |
| Battery Cell Technology | Lithium Battery |
| Communication | CAN/RS485 |
| Enclosure Protection Rating | IP54 |
| Round-trip Efficiency | ≧96% |
| Applications | ON Grid+Backup/OFF Grid |
| Warranty | 5 Years /8 Years |
| Certification | TBD |
Delivery Methods:
① By express UPS/DHL/FEDEX/TNT (It takes 6-10days to arrive).
② By airfreight (It takes about 3~7 days to arrive) .
③ By sea shipment (It takes about 30 days to arrive).
