Waterproof IP20 BMS Li Ion Battery Cell For Home Energy Storage Systems

Basic Properties

Place of Origin: China

Brand Name: Smart

Certification: ISO9001, ISO14001, UL, CE, ROHS, etc

Trading Properties

Minimum Order Quantity: 100pcs

Price: Negotiable

Payment Terms: T/T

Supply Ability: 3000 PCS per Month

Stable Deep Cycle Marine Lithium Battery

Rechargeable Forklift Lithium Battery

Residential Deep Cycle Lithium Battery

Specifications

Warranty:	5~8 Years	Cell Material:	Lithium Iron PhosPhate /NCM/NIMH/Coltbat.etc
Cell Brand:	CATL/BYD/SANYO/Panasonic/Sumsung/etc.	Voltage:	51.2V/Customized
Capacity:	200AH/Customized	Power:	10.24kwh
Charge Method:	CC/CV	Water Dust Resistance:	IP20
Discharge Current:	50A	Charge Temperature:	0℃~45℃
High Light:	IP20 Li Ion Battery Cell , BMS Li Ion Battery Cell , Waterproof BMS Li Ion Battery

Product Description

6000 Cycle Times High Capacity No Memory Effect Li Ion Battery Cell Built in BMS For Home Energy Storage Systems

Features:

High Energy Density ,High Discharge Rate,High Saftey
Pollution Free,Pass the Reach Rohs/CE/UL,etc.
Great Factory Price with Best Quality and After-Selling Service
Low Internal Resistance,No Memory Effect,High Performance
Flexible packaging, laminated type, lean liquid, good safety
Easily Installation,Maintenance Free
Design Flexible ,Multiple Port Input
High-quality power cells with Excellent After-Sales Service
The shell uses ABS+PC, which is stronger and more environmentally friendly
BMS&PCM function: Over-charge protection, Over-Discharge protection, Over-current protection, Short Circuit protection, High Temperature protection, Balance Charge/Discharge protection, Communication protocol function, Battery Power indicator.

Application:Residential Apartments /Villas/Tower ships/Villages and Residential Societies/Showrooms, Banks/Restaurants/Clubs/Spas/Breweries/Small offices/Educational Institutions/Government Buildings/Commercial Establishments/Specialty Clinics / Pathology Labs/Recreation Facilities / Bowling Alleys/Cable Operators/Hospitality /Hotels/Restaurants/Pubs/Bars/Discotheques/Cold Chain and Data Centers/Telecommunication base station

Product Parameters
Eletrical characteristics	Nominal Volatage	51.2V
	Nominal Capacity	200A
	Energy Power	5000W
	Nominal Energy	10.24KWH
	DOD	90%
	Cycle life	>6000 Cycles @ (80%DOD)
	Months Self Discharge	≤3% per month at 25℃
Standard Charge	Charge Voltage Range	44.0v~58.0V
	Charge Mode(CC/CV)	Constant current and constant voltage charging
	Charge Current	50A
	Max.Charge Curret	100A
Standard Discharge	Discharge Current	50A
Standard Discharge	Max Continous Current	100A
Enviromental	Charge Temperature	0°C ~45°C
	Discharge Temperature	- 20°C ~ 50°C
	Water Dust Resistance	IP20/Indoor application
Mechanical	Cell Shape	Square
	Plastic Case	Sheet Metal
	Dimension(HWT)	H750W490T200mm
	Communication Protocol	Pylon/Deye/MUST/Growatt/Megarevo
	Warranty	5~8Years
	HMI	LCD/Blue light
	Cell Welding Method	Laser

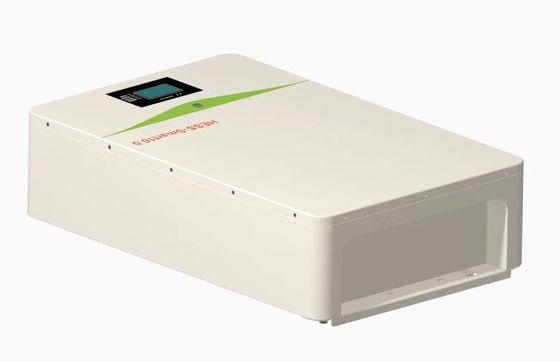

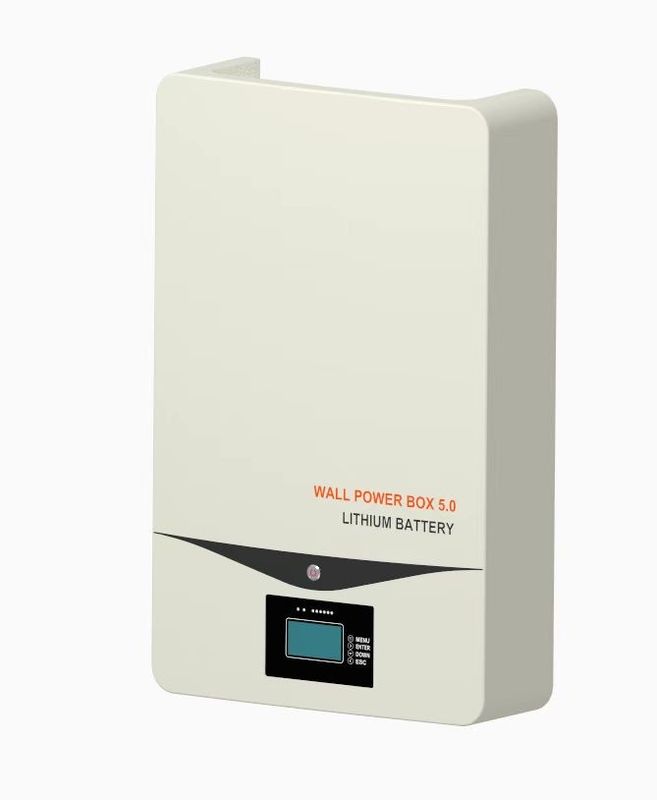

Waterproof IP20 BMS Li Ion Battery Cell For Home Energy Storage Systems 0

Waterproof IP20 BMS Li Ion Battery Cell For Home Energy Storage Systems 1

Waterproof IP20 BMS Li Ion Battery Cell For Home Energy Storage Systems 2

Waterproof IP20 BMS Li Ion Battery Cell For Home Energy Storage Systems 3

Waterproof IP20 BMS Li Ion Battery Cell For Home Energy Storage Systems 4

Waterproof IP20 BMS Li Ion Battery Cell For Home Energy Storage Systems 5
