Solar Energy Storage Power Lithium Battery 40 50 60ah 300 400AH For Electric Vehicle
cell type: | Lifepo4 | Nonimal capacity: | 100Ah At 23±2℃ |
Nonimal voltage: | 3.2V | Max.Charge Current: | 50A |
Max.Discharge Current: | 350A | Application: | Electric Sweeper Chuck,Electric Scooter ,Electric Bike |
High Light: | BIC Power Lithium Battery,400AH Power Lithium Battery,60ah Lifepo4 Golf Cart Battery |
Power lithium battery 30 40 50 60ah 70 80 90 100 200 300 400 AH Lifepo4 for electric vehicle, Solar Energy Storage,golf cart
Features:
- High Energy Density,High Discharge Rate,High Saftey
- Low Internal Resistance,No Memory Effect,High Performance
- Enviromental Friendly,Pass ROHS/CE/UL/MSDS.
- Replacement Battery ,Perfect Macth To Original Machine
- Great Factory Price with Best Quality and After-Selling Service
- Flexible packaging, laminated type, lean liquid, good safety
- Dustproof and Rain Proof Power Plug for Harsh Enviroment
- BMS&PCM function: Over-charge protection, Over-Discharge protection, Over-current protection, Short Circuit protection, High Temperature protection, Balance Charge/Discharge protection, Communication protocol function, Battery Power indicator.
- Easily Installation,Maintenance Free
Application:Electric Sweeper Chuck,Electric scooter ,Electric Bike,Electric Delivery Van,ELectric Farm Tractor,Electric Logistic Van and City Cargo Van.E-cars,E-cars,E-buses,E-trucks,fork lifts,E-scooters,E- boat,Off-highway Vehicle,house storage power/digital ,off-grid solar energy /wind energy storage,Telecom baseation and backup power supply,Drone batteries,Motorcycles batteries, cars batteries, buses batteries, trucks batteries, yachts batteries, Launch batteries, ships batteries, Tricycles batteries, Pedicab batteries, racing cars batteries, three wheeler vehicle batteries, Limousine batteries, Bank Power supply systems batteries, UPS batteries, Solar Energy Storage batteries, Wind Energy Storage batteries, Hospital Power Supply system batteries, Home Power System batteries, etc.Smart Devices, medical devices, mechanical devices, energy storage, Motorcycles batteries, cars batteries, RV batteries, home solar system,Camper batteries, tuk-tuk batteries, sightseeing bus batteries, Pedicab batteries, yacht batteries, three wheeler vehicle batteries, Bank Power supply systems batteries, UPS batteries, Tricycles batteries, Limousine batteries, Telecom Stations batteries, Solar Energy Storage batteries, Wind Energy Storage batteries, Hospital Power Supply system batteries, Home Power System batteries, etc.

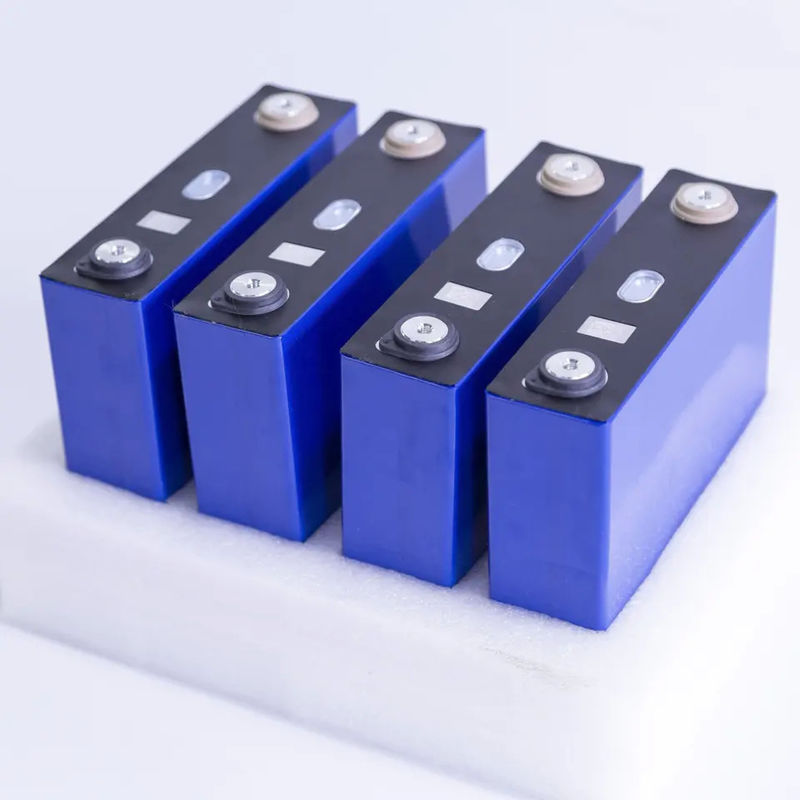

3.2v 100ah cell datasheet
could make battery 12v-400v & 12ah- 200ah
|
|||
No.
|
Item
|
Specification
|
Notes
|
1
|
Cell No.
|
LFPA100
|
|
2
|
cell type
|
Lifepo4
|
|
3
|
Nonimal capacity
|
100Ah at 23±2℃
|
Standard charge and discharge
|
4
|
Nonimal voltage
|
3.2V
|
|
5
|
Energy
|
320Wh at23±2℃
|
|
6
|
Cell dimension(H*W*T)
|
48*174*133mm
|
|
7
|
Weight
|
about 2.25kg
|
|
8
|
Charging Voltage
|
3.65V
|
|
9
|
Discharge End Voltage
|
2.0V+0.15V
|
|
10
|
Standard Charging
|
CCCV and CC is 50A
|
Temperature 23±2℃,charge end with 2.5h or
|
11
|
Max.Charge Current
|
50A
|
Temperature23±2℃
|
12
|
Standard Discharging
|
100A
|
Constant Current Discharge with 1C
|
13
|
Max.Discharge Current
|
350A
|
Discharge Time: Less than 15 s(at23±2℃)
|
Take care
- Li-ion batteries can be dangerous when used wrong, short circuit or wrong usage can lead to fire or an explosion
- Do not put the battery in a charger or equipment with wrong terminals connected
- Never short cut the battery. Take care you don’t short cut it accidentally, do not put it in your pocked together with bunch of keys
- Do not disassemble or deform the battery. Dispose it if the battery is deformed
- Do not immerse in water
- Avoid excessive physical shock or vibration
- Do not expose to, dispose of the battery in fire
- Keep out of the reach of children
- Never use a modified or damaged charger
- Do not leave battery in charger over 12 hours
- Store the battery in a cool, dry and well-ventilated area
- Dispose of in accordance with local regulations
- Do not solder on these cells
