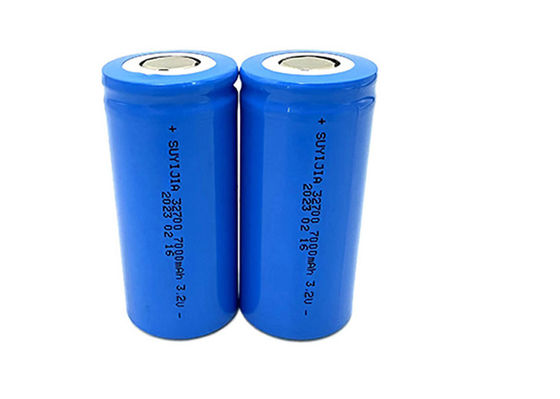

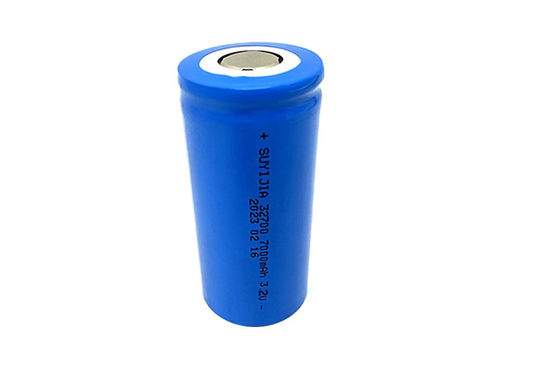

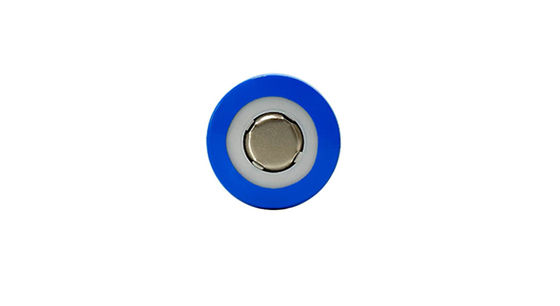

32700 LiFePO4 Battery Cell 3.2V 6000mah Feature Of 32700 LiFePO4 Battery

32700 LiFePO4 Battery Cell 3.2V 6000mah Feature Of 32700 LiFePO4 Battery

  • 32700 LiFePO4 Battery Cell 3.2V 6000mah Feature Of 32700 LiFePO4 Battery
  • 32700 LiFePO4 Battery Cell 3.2V 6000mah Feature Of 32700 LiFePO4 Battery
  • 32700 LiFePO4 Battery Cell 3.2V 6000mah Feature Of 32700 LiFePO4 Battery
32700 LiFePO4 Battery Cell 3.2V 6000mah Feature Of 32700 LiFePO4 Battery
Product Details:
Place of Origin: China
Brand Name: HUAXIN
Certification: MSDS,CE,KC, BIC
Model Number: HX18650003
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: can be negotiated
Packaging Details: can be negotiated
Delivery Time: 10 work days
Payment Terms: T/T
Supply Ability: 500000pcs/month
Contact Now
Detailed Product Description
Battery Capacity: 18650 Battery Type: 18650 Lithium Battery
Capacity: 2000mAh Life Span: 3-5 Years
Max Discharge Current: 2.5A Operating Temperature: -20℃~60℃
Protection: Overcharge, Overdischarge, Short Circuit Recharge Cycles: 500+
Rechargeable: Yes Size: 18.2mm X 65.2mm
Storage Temperature: -20℃~45℃ Voltage: 3.7V
Warranty: 12 Months Weight: 45g
Charge Cut-off Voltage: 4.2V Cycle Life: ≥500 Times
Discharge Cut-off Voltage: 2.75V Internal Resistance: ≤50mΩ
Maximum Charge Current: 2A Maximum Discharge Current: 10A
Protection Function: Overcharge, Over-discharge, Over-current, Short-circuit Protection
High Light:

32700 LiFePO4 Battery Cell

,

LiFePO4 Battery Cell 3.2V 6000mah

,

32700 LiFePO4 Battery

32700 LiFePO4 Battery Cell 3.2V 6000mah Feature of 32700 LiFePO4 Battery

Is LiFePO4 better than lithium-ion?


In most ways, LiFePO4 batteries are better than comparable lithium-ion batteries. Lithium iron phosphate batteries are less prone to combustion and thermal runaway, making them safer for home use. Plus, a longer cycle life means the LiFePO4 batteries will outlast lithium-ion for up to five times longer.


What is the battery 32700 used for?



32700 LiFePO4 Battery is suitable for all kinds of small electric tricycle battery packs, sprayer batteries, solar street lights, solar garden lights, photovoltaic energy storage, strong light flashlights, backup power supplies, etc.

32700 LiFePO4 Battery Cell 3.2V 6000mah Feature Of 32700 LiFePO4 Battery 0
32700 LiFePO4 Battery Cell 3.2V 6000mah Feature Of 32700 LiFePO4 Battery 1
32700 LiFePO4 Battery Cell 3.2V 6000mah Feature Of 32700 LiFePO4 Battery 2


About this item

  • Model: 32700 3.2v Lifepo4 battery;Nominal Capacity:7.2Ah ,Nominal Voltage: 3.2v
  • Battery Dimension: 32x70mm, 150g;Internal Resistance: less than 8 mohms;Cycle life:Less than 2000 times;Combination: Can be 3s 4s 8s 10s 13s , etc
  • Input Charging Voltage 3.65v/cell;Input Charging Current:3A;Continuous Discharging Current:30A;
  • Max Current Discharge: 6C;Discharge cut-off Voltage: 2.50v/cell;Charging Temperature: 0~45Centigrade;Discharging temperature: -20~60Centigrade;Storage temperature: -20~45Centigrade
  • 32700 LiFePO4 Battery is suitable for all kinds of small electric tricycle battery packs, sprayer batteries, solar street lights, solar garden lights, photovoltaic energy storage, strong light flashlights, backup power supplies, etc.





Cell LiFePO4 32700, can replace LiFePO4 32650 with same size but higher capacity
Standard Voltage 3.2 V
Standard Capacity 6000 mAh (at 0.2C discharge)
Charging Condition
  • Standard charge: 1200mA / 0.2C Constant Current Charge to 3.65±0.05V
  • Then with Constant Voltage at 3.65V , charge until 60mA / 0.01C cut off
  • Maximum charge current: 3000mA / 0.5C
Discharging Condition
  • Cut-off Voltage: 2.0V
  • Standard discharge current: 1200mA/0.2C
  • Max. Continuous Discharge Current: 18A / 3C
  • Pulse Discharge Current: 30A, 5s / 5C
Operation Temperature
  • Charging: 0 - 55 oC
  • Discharging: - 10 - 60 oC
Cycle Performance
  • ≥80% Nominal Capacity after 2000 times standard charge and discharge
Dimensions(DxH) (max with tab) 32±0.3mm (1.26") x 70.5±0.4mm (2.78")
Weight 5 Oz (141±2 grams)

WARNING:

The user must have appropriate understanding of lithium ion batteries before purchase. Use caution when working with and using lithium ion batteries as they are very sensitive to charging characteristics and may explode, burn, or cause a fire if misused or mishandled. Always charge in or on a fire-proof surface. Never leave batteries charging unattended. Buyer is responsible for any damage or injury caused by misuse or mishandling lithium ion batteries and chargers. No express or implied guarantee of compatibility with any device can be made. Charge only with a smart charger designed for this specific type of lithium ion battery. Do not mix and match old and new, used and unused batteries.

  • DO NOT USE WITH E-CIGARETTE, VAPORIZER, OR SIMILAR DEVICE
  • MISUSING OR MISHANDLING LITHIUM ION BATTERIES CAN POSE A SERIOUS RISK OF PERSONAL INJURY, PROPERTY DAMAGE, OR DEATH
  • BATTERIES MAY EXPLODE, BURN, OR CAUSE A FIRE IF MISUSED OR MISHANDLED
  • ONLY USE WITH PROPER CIRCUITRY IN A PROTECTED BATTERY PACK
  • ONLY USE WITHIN MANUFACTURER LISTED SPECIFICATIONS
  • DO NOT STORE LOOSE BATTERY IN A POCKET, PURSE ETC. - ALWAYS USE A PROTECTIVE CASE OR BOX
  • KEEP AWAY from metal objects to prevent short circuiting
  • DO NOT short circuit
  • DO NOT use if wrapper or insulator is damaged or torn
  • DO NOT use if damaged in any way
  • DO NOT overcharge or over-discharge
  • DO NOT modify, disassemble, puncture, cut, crush, or incinerate
  • DO NOT expose to liquids or high temperatures
  • DO NOT solder, spot weld only
  • User must be familiar with handling lithium ion batteries before purchase
  • Usage of batteries is AT YOUR OWN RISK
  • ALWAYS charge in or on a fire-proof surface and never leave charging batteries unattended
  • RESELLERS MUST FORWARD ALL WARNINGS TO ALL CUSTOMERS FOR THEIR REFERENCE AND SAFETY
  •
